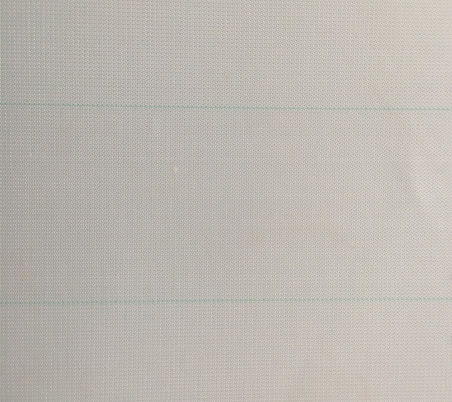

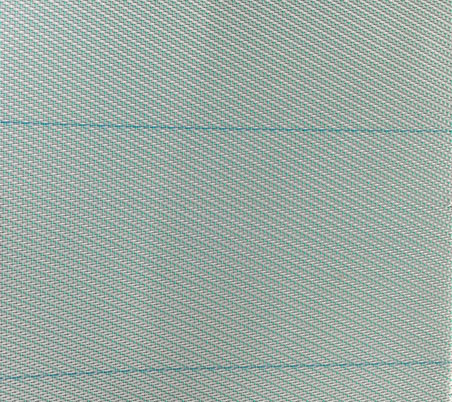

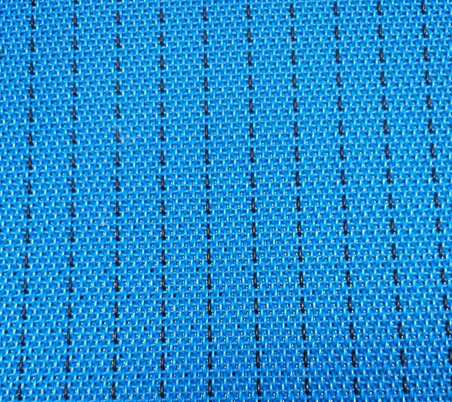

    Polyester anti-static woven mesh belt

    Description:

    Anti-static Screen Mesh is specially made in spiral weave of monofilament with filling metal wire to increase anti-static property. With the conductive metal fiber woven into the mesh belt, the polyester mesh screen can release the friction electrostatic occured during high speed operation of machine. Hence, it is called anti-static wire mesh. The anti-static polyester conveyor belts are used in drying pulp style paper-making, chemical fiber, continuous pre-press mesh belt, environmental protection, high density paper board making, rubber and other anti-static industries.


    Application:
    1. Filtering and separating screen used in the colliery, food, salt and mine industry;

    2. Pressing and drying belt in pulp making, sulplate pulp packing and cardboard pulp;
    3. Fiberboard plants, medicine, printing, drying industry as draining conveyor belt;
    4. Pharmacy, environment protection;
    5.Processing of hides, shoe-making, clothing, ceramics as conveyor filter belt;
    6.Foodstuffs processing industries as filter screen.

    7.Anti-Static Press Filter Conveyor Belt with Smooth Surface, Mesh Screen with no deformation, no-blocking, good ventilation and safe static discharge;

    8.Polyester Monofilament Conveyor Belt for dewatering and separating screen used in food, salt and mine industry


    Advantages:

    Anti static mesh belt offers good strength, flat mesh surface, good air permeability and stable property against heat and moisture. The screen mesh shows low thermal shrinking, less elongation at heat, it is resistant to most acids and organic solvents, hence safe for food processing and many other applications.



    Polyester anti-static woven mesh belt

    Polyester anti-static woven mesh belt

    Polyester anti-static woven mesh belt

    Polyester anti-static woven mesh belt


    Details:

    Material:100% polyester, monofilament.
    Standard Weight: 50gsm ~ 260gsm, Other special weight is also available.
    Width:1.5m , 1.8m , 2m, upto 6m or as you need.
    Length: According to Customer's Request.
    Mesh Density: ≥800head/100cm2
    Tensile strength: Approx.550 N/5 cm.
    Temp. Resistance: -40°c to +80 °c.
    Weaving: Plain weaving



    Model of Fabrics

    Wire Diameter(mm)

    Density(wire/cm)

    Strength(N/cm)

    Air permeability

    (m3/m2h)



    Warp

    Weft

    Warp

    Weft

    Area of the surface



    4106/ anti-static

    0.5

    0.5

    23

    12

    ≥2000

    6800 ±500

    4080/anti-static

    0.9

    1.1



    ≥2000

    20000 ±500






    Packing detail:

    1.We always use poly bag for the goods which ship by air, so that customer can save freight free.

    2.Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping.

    3.There also have some customer request us to use the carton to packing their goods.

    4.We can according to customer's requirement.



    Q: How long is your delivery time?

    A:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



    Q:Do you provide samples?

    A:Yes, we can provide some of the product samples.

    Its free and freight should be collected by your side.



    Q:How can I know the completion of my order?

    A:Deposit payment---start production---transfter infor to logistic---book shipment--inform customer ETD&ETA---load container---balance payment---send documents


    Polyester anti-static woven mesh belt


    Service:

    1. Pre-sale service

    Prompt,professional and patient reply;

    Offer best quality products;

    Recommend the most suitable products

    2.After-sales Service

    Timely tracking cargo transportation

    Building customer files for regularly visit

    Free replacement of damaged products

    Deal with customers`dissatisfaction and complaints

    Send gift to our customers

    3.Customized packing is always welcomed

    4.Assist to arrange transportation

    Air Transportation,Sea Transportation

    International Express :DHL,TNT,FedEx,UPS,EMS,ETC.


    Polyester anti-static woven mesh belt

    Polyester anti-static woven mesh belt

    Polyester anti-static woven mesh belt
