Home > Products >Polyester Dryer Fabrics
polyester polypropylene filter press woven micron filter cloth polyester polypropylene filter press woven micron filter cloth polyester polypropylene filter press woven micron filter cloth polyester polypropylene filter press woven micron filter cloth polyester polypropylene filter press woven micron filter cloth polyester polypropylene filter press woven micron filter cloth

polyester polypropylene filter press woven micron filter cloth

    Title: mine industry press filter fabric

    Key words: filter fabric presss filter cloth on the frame


Inquire Now
  • Quick Details
  • Detailed Descriptions
  • Packaging & Delivery
  • Services

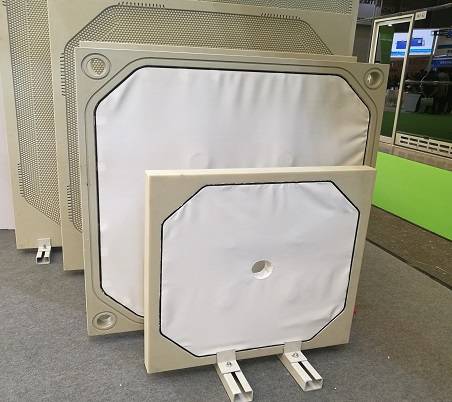

    We are known in the industry by presenting a wide range of Membrane Filter Press Fabric. Our Membrane Filter Press Fabric is ideal to use in membrane filter press.We manufacture filter press fabrics with butterfly or membrane type according to customized technical requirements in various micron sizes.


    Filter press belts are very strong and abrasion resistant. They have high dimensional stability during machine load and their edges are reinforced. Fabric construction ensures good drainage of liquid and at the same time prevents the extrusion of the sludge cake through the fabric. Individual fabric designs differ in the speed of dewatering, size of apertures, and surface smoothness to ensure easy cake release, resistance to abrasion, etc.


    The filter press belts are herringbone weave belts in polyester or polyester/polyamide or 100% polyamide. Various patterns and apertures.

    Below are the available joining ways:1. Detachable Stainless Steel Clipper Seam (metallic hooks)2. Woven seam3. Added spiral4. Pin

    Examples of Application:

    Dewatering of municipal sludge in sewage plants

    Dewatering of agricultural sludge

    Dewatering of paper sludge and pulp

    Dewatering of minerals in the mining industry

    Dewatering of sand

    Pressing of fruit in the wine-making industry

    Production of fruit and vegetable juice

    Other industrial separation processes


    Basic Fabric Designs

    Press SW (300 – 500 CFM)

    Press SW is the most widely used filter fabric suitable for a wide range of industrial applications, including the sludge dewatering in sewage plants.

    Benefits:

    High flow rate

    Easy cleaning

    Suitable for the majority of industrial applications


    Press HD (400 – 450 CFM)

    Made of PET and PAD yarns with large diameters, Press is highly resistant to abrasion. It is suitable for dewatering of sludge containing hard abrasive particles, especially in the mining industry.

    Benefits:

    High resistance to abrasion

    Long service life

    Suitable for dewatering of very abrasive sludge


    Press E (300 – 350 CFM)

    Made of PET and PAD yarns with large diameters, Press is highly resistant to abrasion. It is suitable for dewatering of sludge containing hard abrasive particles, especially in the mining industry.


    Benefits:

    High resistance to abrasion

    Long service life


    Suitable for dewatering of very abrasive sludge


     Specification

    Material:PA, PET, PP, PVDF or as required
    Weave style:



    Twill, Plain,Double twill,

    Heavy twill or customized

    Width:0.6-3.65m
    weight:350gsm-460gsm
    length:as customized
    thickness:53-1100um
    working temperature:less than 130°c
     Filter cloth type:
    Multifilament,
    monofilament
     Mesh count:100-8000
     OEM/ODM:Available

    THE FILTER CLOTH WHICH CAN BE APPLIED IN VARIOUS INDUSTRY

    No.

    Product Name

    Material

    Weight (g/m2)

    Thickness

    (mm)

    AirPermeability

    (L/M2/S)

    Applied Industry

    01

    JJ1515

    Polypropyllenemonofilament

    350

    0.55

    80

    Diatomite

    02

    1323

    Polypropyllenemonofilament

    390

    0.65

    315

    Pyrohydrolysis,

    Anaerobic Sewage

    03

    JJ1542

    Polypropyllenemonofilament

    360

    0.5

    50

    White carbon black

    04

    JJ1520

    Polypropyllenemonofilament

    380

    0.65

    160

    Specialized for sewage-automic

    Cake discharge

    05

    Specialized for beer

    Polypropyllenemonofilament

    335

    0.65

    950

    Specialized for beer

    06

    JJ1540

    Polypropyllenemonofilament

    327

    0.75

    570

    Aluminium oxide-vertical disc filter

    07

    JJ2915

    Polypropyllenemonofilament

    334

    0.55

    195

    Bentonite

    08

    PA2026

     Polyamide monofilament

    425

    0.62

    900

    Coal washing

    09

    JJ1570

     Polyamide monofilament

    306

    0.4

    550

    Palm oil

    10

    5536

     Polyamide monofilament

    270

    0.4

    380

    Rice syrup oil

    11

    Twill silk screen

     Polyamide monofilament

    250

    0.52

    3200

    Alcohol,citric acid, aluminite powder

    12

    80mesh silk screen

     Polyamide monofilament

    140

    0.26

    4300

    Alcohol, citric acid

    13

    JJ2222

     Polyamide monofilament

    665

    1

    230

    Specialized for titanium dioxide waste water(one-time open)

    14

    New type 2026

     Polyamide monofilament

    464

    0.76

    1800

    Municipal sewage, coal washing

    15

    JJ2630

    Polyamid/polypropylene monofilament

    480

    0.86

    600

    Specialized for sewage-automatic cake discharge

    16

    Thickened JJ2245

    Polyamid6/polyamide66 monofilament

    395

    0.6

    1150

    Aluminium oxide-flat disc filter


    Packing detail:

    1.We always use poly bag for the goods which ship by air, so that customer can save freight free.

    2.Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping.

    3.There also have some customer request us to use the carton to packing their goods.

    4.We can according to customer's requirement.
