Title: polyester-filter-belt-used-in-mine-industry
Key words: polyester-filter-belt-used-in-mine-industry
Our filter cloth can be customized and converted to fit any manufacturer’s filter press, no matter the size or shape. We make sure that all of our filter cloth for filter press systems are carefully selected and optimized
Features
1) Available in PA, PET, PP, PVDF, or as required.
2) Ease of cleaning.
3) Customized designs, shapes and materials possible.
4) Max temperature 130℃, acid and alkali resistant.
5) Sealant steel or plastic ring, adjusted to various types of equipment.
The benefits of Belting products

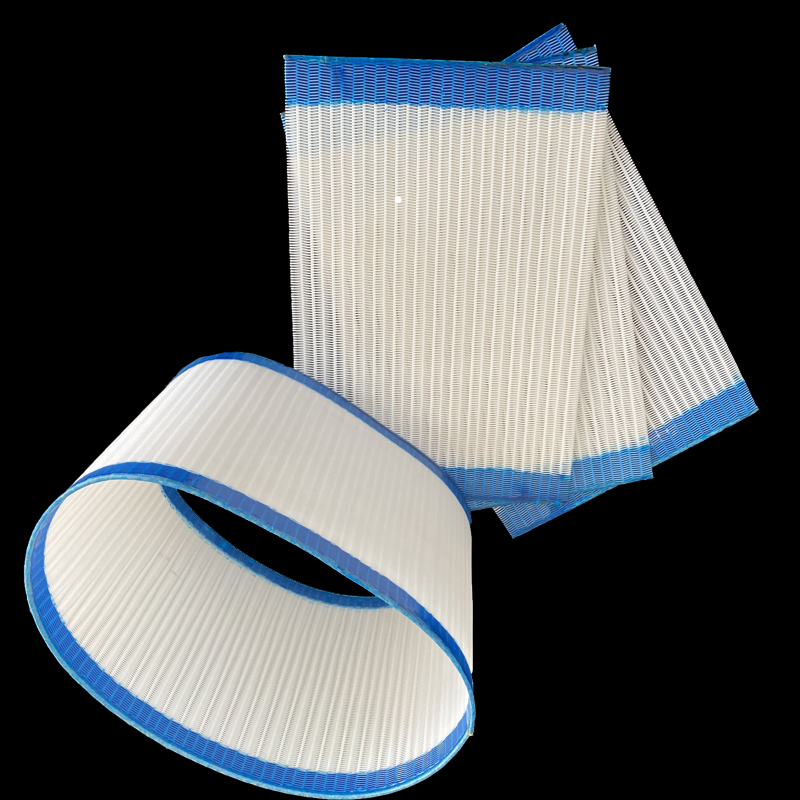

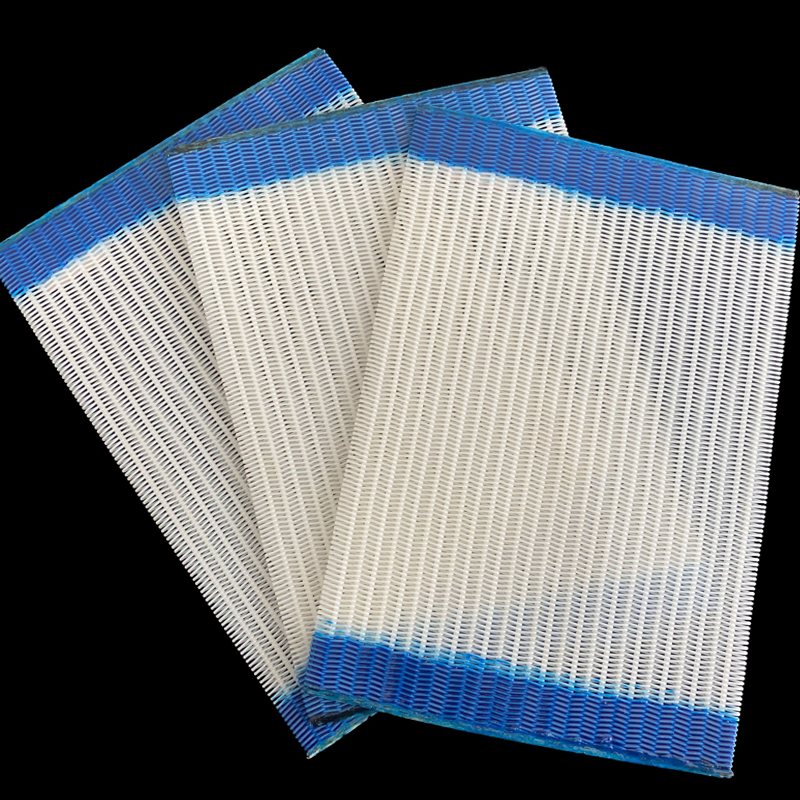

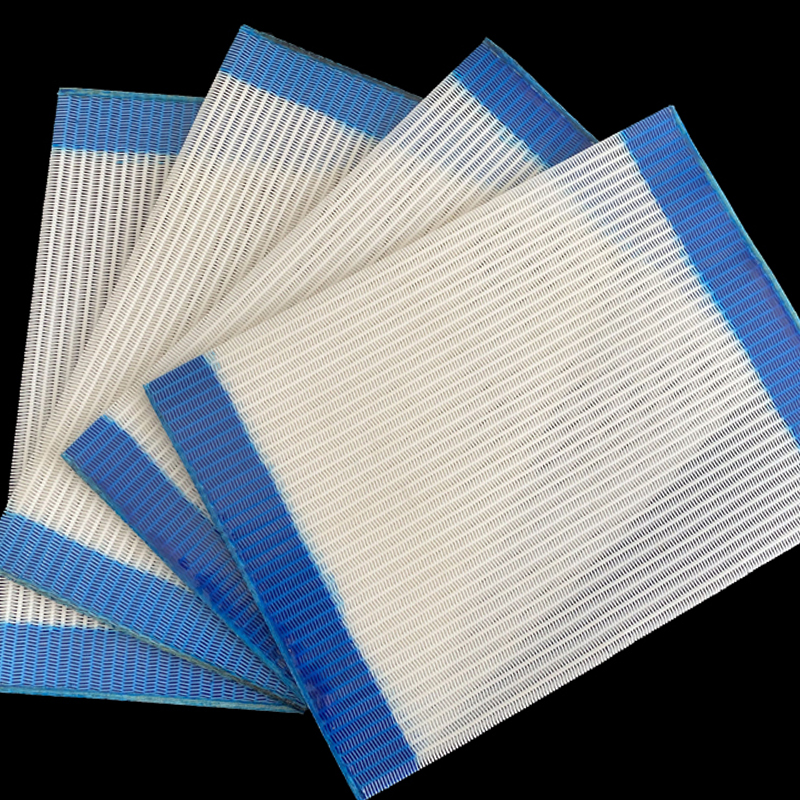

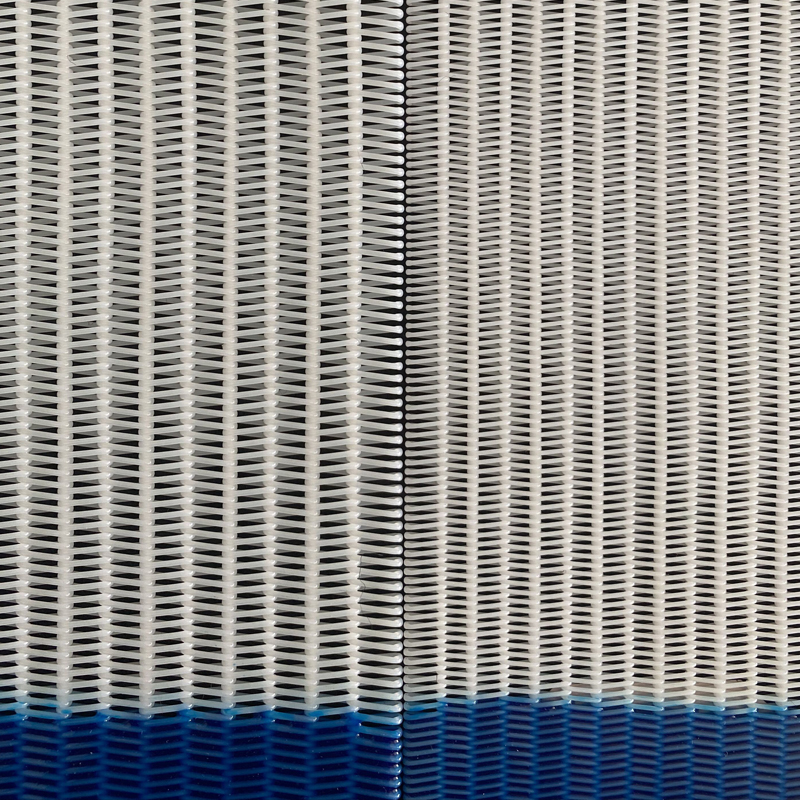

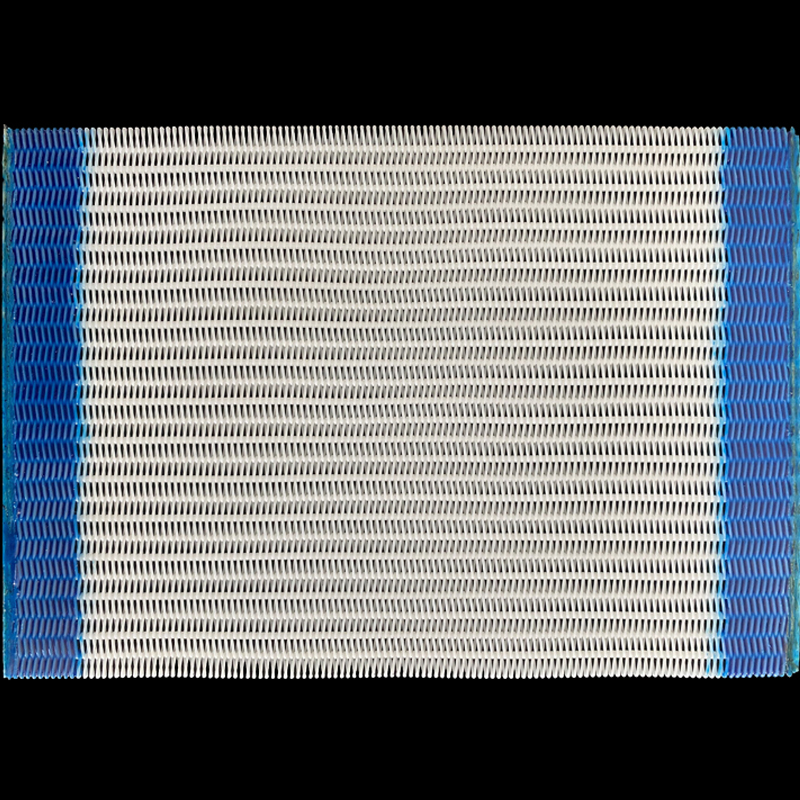

The mesh belts using polyester material to prevent delamination and fabric contamination. This ensures that the belt is hard wearing, chemical resistant and offers optimum performance and extended life
| Type | Spiral loop width mm | Filament diameter mm | N/CM | weight kg/㎡ | Thickness mm | Air permeabillty ㎡/m³h | CFM 127/pa | ||
| Spiral ring monofilament mm | Connection wire mm | Filler material monofilament | |||||||
| 5080A1 | 5.2 | 0.50 | 0.80 | 0.60×3 | 1800 | 1.50 | 2.1 | 4480 | 280 |
| 6890A1 | 8 | 0.68 | 0.90 | 0.80×4 | 2000 | 2.0 | 2.45 | 6080 | 380 |
| 6890B1 | 7.15 | 0.68 | 0.90 | 0.90×3 | 2000 | 1.90 | 2.45 | 5760 | 360 |
| 6890B2 | 7.15 | 0.68 | 0.90 | 0.80×3 | 2000 | 1.85 | 2.45 | 7750 | 484 |
| 6890B3 | 7.15 | 0.68 | 0.90 | Flat filament 2.1×0.80 | 2000 | 1.80 | 2.45 | 9000 | 563 |
| 6890B4 | 7.15 | 0.68 | 0.90 | Flat filament 2.4×0.88 | 2000 | 1.85 | 2.45 | 8000 | 500 |
| 6890B5 | 7.15 | 0.68 | 0.90 | Conductive carbon filament | 2000 | 1.60 | 2.45 | 10000 | 625 |
| 9090A1 | 8 | 0.90 | 0.90 | 0.90×3 | 2300 | 2.30 | 3.03 | 7500 | 468 |
| 90110A1 | 10 | 0.90 | 1.10 | 1.0×4 | 2000 | 2.40 | 3.15 | 6240 | 390 |
| PA90110A2 | 10 | 0.90 | 1.10 | 1.2×3 | 2000 | 2.25 | 3.15 | 6240 | 390 |
| 10090A1 | 8 | 1.0 | 0.90 | 1.0×3 | 2000 | 2.50 | 3.60 | 5000 | 315 |
| 120130A1 | 1.2 | 1.20 | 1.30 | 1.2×3 | 2600 | 2.85 | 4.30 | 7500 | 468 |
Packing detail:
1.We always use poly bag for the goods which ship by air, so that customer can save freight free.
2.Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping.
3.There also have some customer request us to use the carton to packing their goods.
4.We can according to customer's requirement.
