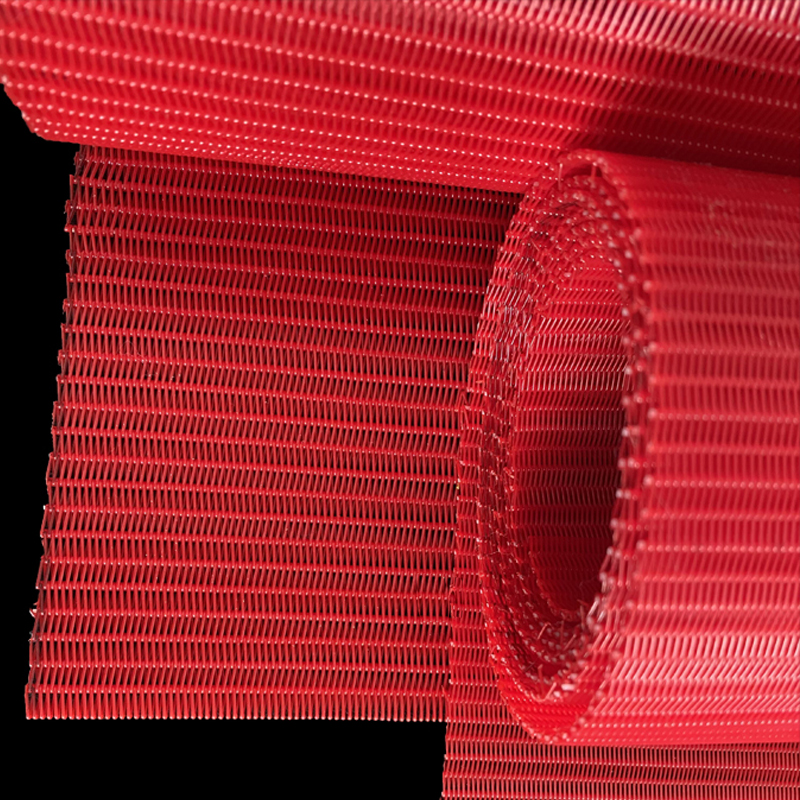

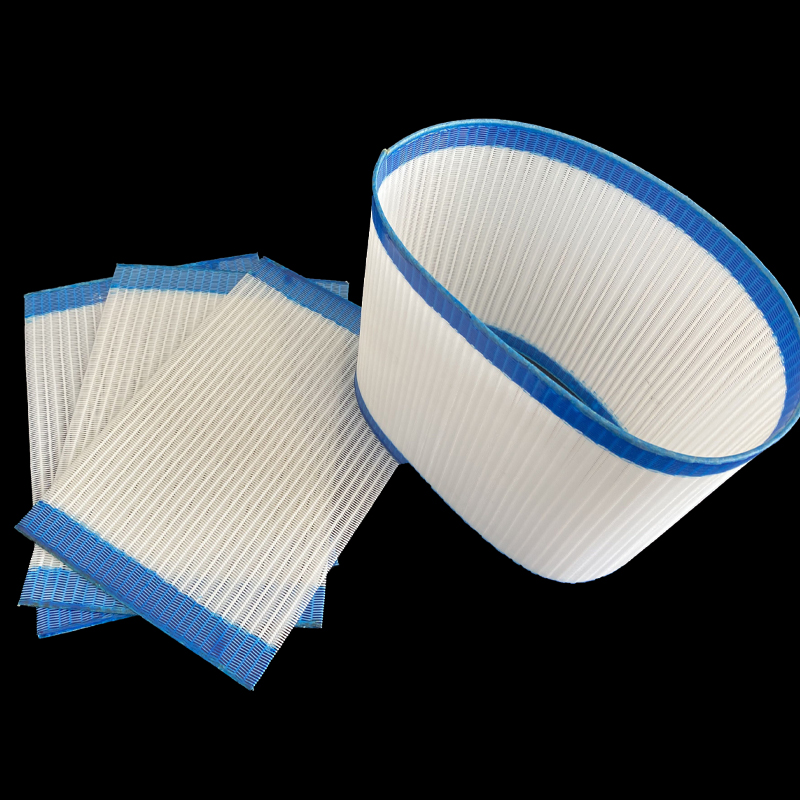

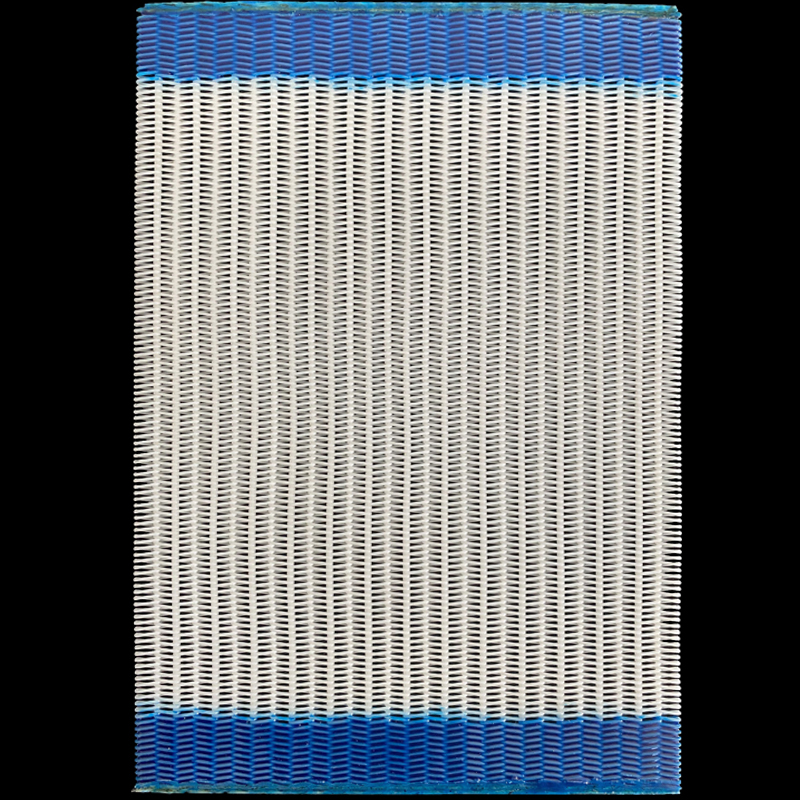

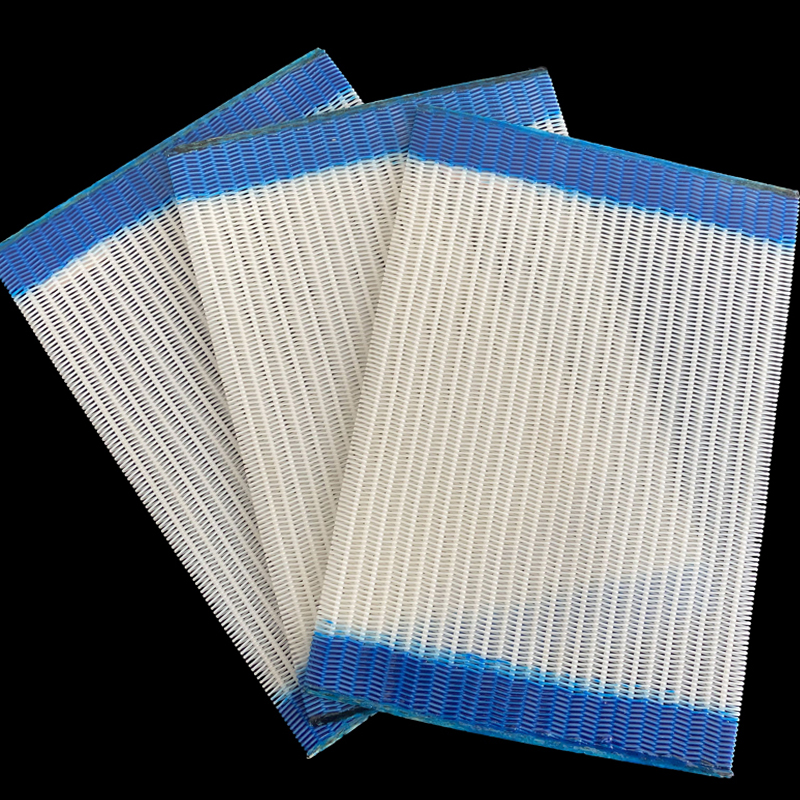

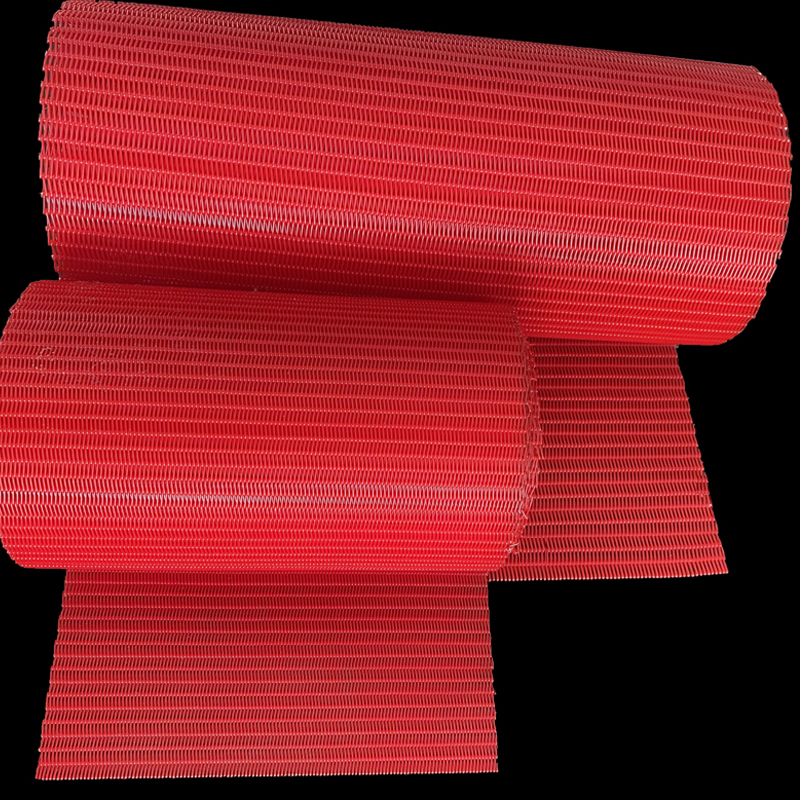

                                                                 Polyester Paper Making Dryer Screen Mesh Belt

    1 Product Details of Flat yarn polyester dryer woven mesh screen fabric for paper making machinery

    · Polyester Dryer Woven Mesh Screen Fabric can be divided into 3-shed, 4-shed according to the weaving. It can be divided insert, pin, pin ring and spiral ring join according to the interface type.


    · Polyester Dryer Woven Mesh Screen Fabric can be divided into 3-shed, 4-shed according to the weaving. It can be divided insert, pin, pin ring and spiral ring join according to the interface type.



    · 22504/24504/4106 synthetic dryer wire mesh mainly used in the latter part of the muti-cylinder paper machine becuase its higher permeability, generally it is suitable for drying papers above 70g.



    · 4106-2/16904 synthetic dryer wire mesh generally used for multi-cylinder paper machine, the first three groups of paper drying, high-grade paper.



    · 4106-2/16904 synthetic dryer wire mesh generally used in the fore group of paper drying, high-grade papers are all available.

    According to the category, polyester dryer fabrics can be divided into one and a half layer dryer fabric, double layer fabric, flat wire dryer fabric, flat double warp wire dryer fabric and special material dryer fabric.

    3-shed, 4-shed one layer and a half are suitable for drying cultural paper, printing paper and packing paper etc.

    Flat wire and flat double warp wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use the both.

    Special material dryer fabric have the characteristics of high temperature resistance, abrasion resistance and aging resistance etc.



    Weaving series&Types

    Model of Fabrics

    Wire Diameter(mm)

    Density(wire/cm)

    Strength(N/cm)

    Air permeability (m3/m2/h)



    Warp

    Weft

    Warp

    Weft

    Area of the surface

    3-shed series

    22503

    0.5

    0.5

    24

    Weft

    2000

    8000±500

    4-shed series

    20504

    0.5

    0.5

    22

    12

    1900

    13000±500

    22504

    0.5

    0.5

    24

    12

    2000

    12000±500

    24504

    0.5

    0.5

    26

    12

    2100

    11000±500

    Round wire fabric

    4106

    0.5

    0.5

    22

    12.4

    2000

    6800±500

    Flat wire fabric

    4106-1

    0.38*0.58

    0.5

    16.66

    15

    2000

    5954±500

    4106-2

    0.38*0.58

    0.4/0.6

    18

    14.66

    2000

    4800±500

    SL4106

    0.5*0.75

    0.6/0.,4

    14.66

    12.66

    2100

    6000±500

    SJ1860

    0.25*1.05

    0.6/0.9

    9

    7

    2200

    2100±500

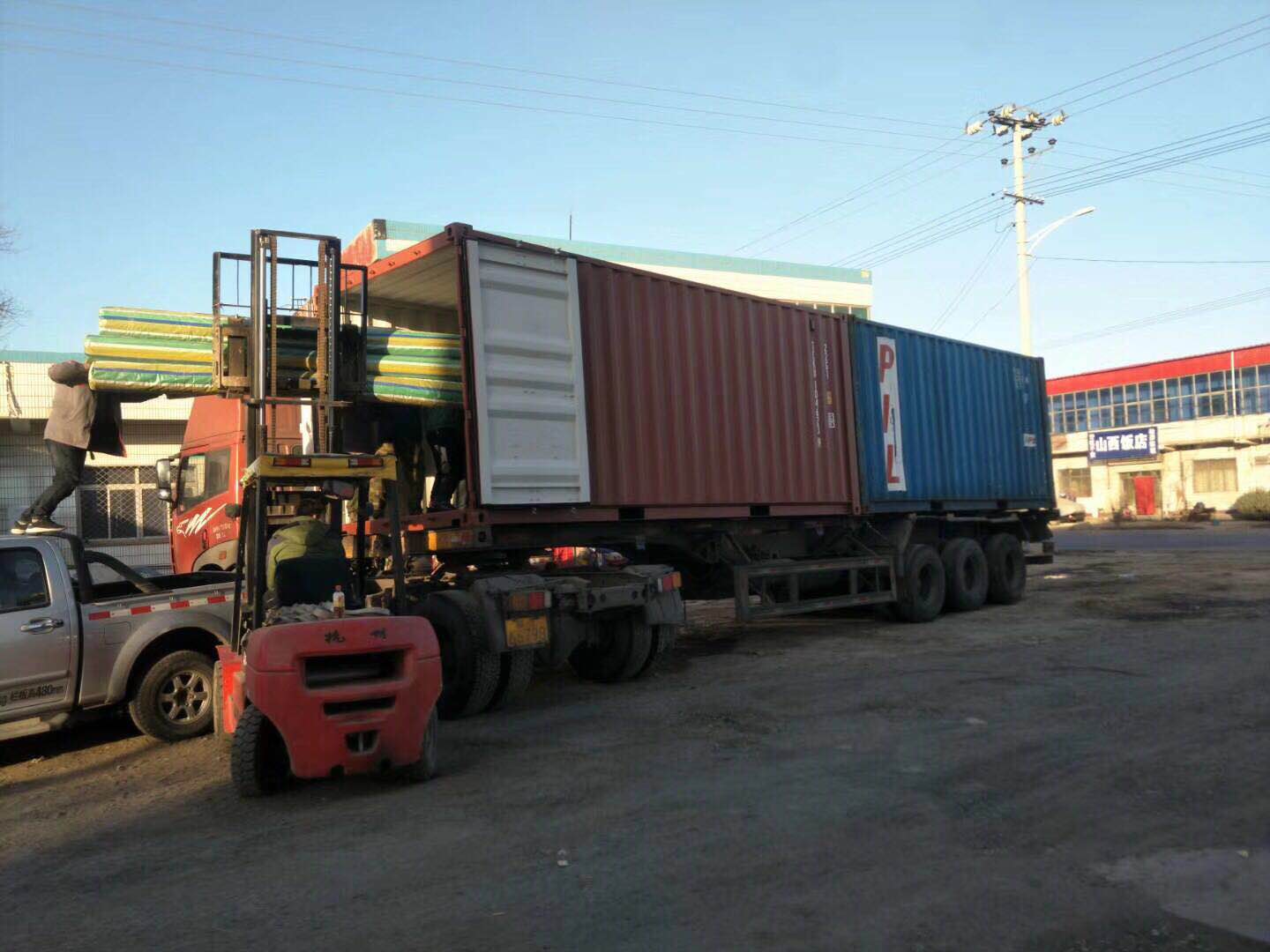

    Packing detail:

    1.We always use poly bag for the goods which ship by air, so that customer can save freight free.

    2.Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping.

    3.There also have some customer request us to use the carton to packing their goods.

    4.We can according to customer's requirement.
