Polyester Forming Fabric Weaving for Paper Making

    Title: Polyester forming fabric weaving for paper making

    Key words: polyester forming fabric, polyester paper making fabric,


Inquire Now
  • Quick Details
  • Detailed Descriptions
  • Packaging & Delivery
  • Services

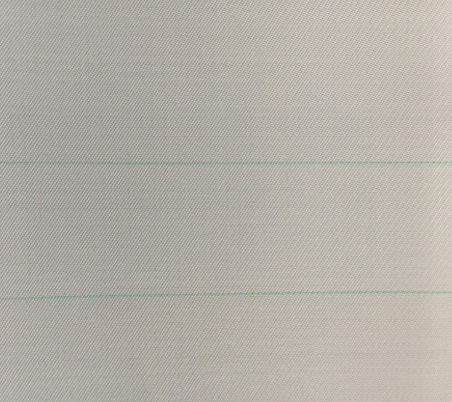

    Product description:

    Papermaking endless polyester forming fabric can be divided into 4-shed, 5-shed, 8-shed, 16-shed, 24-shed according to the weaving type, etc.



    Papermaking endless polyester forming fabric can be divided into single layer fabric, double layer fabric, two-and-a half layer fabric and three-layer fabric according to the category,.



    4-shed and 5-shed series single layer fabric is a standard type of polyester forming fabric in papermaking, mainly used for producing cultural paper (single glue, double glue, and color glue), printing paper, glazed paper, packing paper, common newsprint and so on. Suitable for common fourdrinier paper machine.



    8-shed single layer polyester forming fabric is suitable for producing the packing paper which is requested with big quantity, like kraft paper, cardboard, corrugated paper and so on. Also could be used for producing common printing paper. Suitable for common fourdrinier paper machine.



    8-shed double layer fabric is suitable for producing quality printing paper which includedictionary paper, offset printing paper, newsprint and wrap paper. Also is could be used for producing tissue paper and the surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high-speed paper making machine.



    16-shed double and a half layer polyester forming fabric is suitable for producing quality printing paper, such as offset printing paper, copperplate paper, newsprint and cigarette paper series (wrap paper and filter tips paper), Also is could be used for producing toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high-speed paper making machine.



    Multi-shed three-layer fabric is suitable for producing quality printing paper, tissue paper and cigarette paper etc. Suitable for high speed paper making machine

    Multi-shed three-layer fabric is suitable for making quality printing paper, tissue paper and cigarette paper etc.



    Brief introduction:
    1. Material: polyester
    2. Usage: on the forming part of the paper making machine
    3. To make the culture paper, printing paper, and packing paper
    4. Shed: 4 layers: single layer
    5. Filled or unfilled to achieve different filtration characteristics
    6. Adhesive edges for lasting, economical solutions
    7. Widths up to 13m
    8. Can be made as your requirements
    9. Common type: 27254, 31204

    27254:
    Warp diameter: 0.20mm, warp density: 30 thread/cm
    Weft diameter: 0.25mm, warp density: 22 thread/cm
    Surface strength: >600N/cm, joint strength: >400N/cm
    Thickness: 0.49mm
    Air permeability: 8000m³/m² (500CFM)
    Max elongation at 50N/cm: 0.60%

    31204:
    Warp diameter: 0.18mm, warp density: 35 thread/cm
    Weft diameter: 0.20mm, warp density: 28 thread/cm
    Surface strength: >600N/cm, joint strength: >400N/cm
    Thickness: 0.43mm
    Air permeability: 7500m³/m² (470CFM)
    Max elongation at 50N/cm: 0.60%


    Features
    According to the weaving, polyester dryer fabric can be divided into 3-shed, 4-shed. According to the category, it can be divided into one and a half layer, double layer and rectangular wire fabric.
    According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring join.
    3-shed one layer and a half are suitable for drying papers below 70g.
    4-shed double layer fabric is suitable for drying papers above 70g.
    Rectangular wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use all.

    Polyester Forming Fabric Weaving for Paper Making

    Polyester Forming Fabric Weaving for Paper Making

    Polyester Forming Fabric Weaving for Paper Making






    TypeFilament diameter mmDensity(root/cm)Tensile strengthN/cmWeightKg/m2ThicknessmmMeshAperturemmAirPermeabilitym3/m2hCFM127PaOpen porosity
    WarpWeftWarpWeftsurfacejoint
    0210021.01.02.852.6516006500.61.857.1*6.732.5*2.7732000200052.55
    0310021.01.03.23.2516006500.81.868.1*8.22.12*2.0725600160045.9
    039020.90.93.93.6516006500.551.79.6*9.31.66*1.8320000125046.58
    056020.60.65.95.616006500.621.114.98*14.21.09*1.1818000112542.89
    058020.80.85.15.316006500.891.4813*13.51.16*1.081584099034.09
    066520.650.657.46.816006500.651.1918.8*17.30.7*0.8214400119028.96
    068020.80.86.66.516006500.851.4516.8*16.50.72*0.731160072522.65
    067020.70.77716006500.771.317.8*17.80.72*0.721100069026.01
    078020.80.87.8716006501.11.4520.3*180.32*0.54592037016.54
    095020.50.59.710.316006500.50.925*6.20.53*0.471010063424.97
    125020.50.513.58.516006500.631.9534.3*21.60.24*0.656500628018.68
    094520.450.45108.616006500.450.8825.4*21.80.55*0.711557097033.71
    086030.50.69.4916006500.60.1523.8*23.10.56*0.51900056024.38
    068030.70.875.516006500.751.5317.8*140.72*1.016000100028.56
    078030.80.88816006501.151.6620.3*20.30.45*0.45918457412.96
    079030.80.87.66.516006501.251.7619.3*16.50.51*0.63640040016.26



    Q: How to make an inquiry of forming fabric?
    A: You need to provide speed of paper making machine, paper type, weight of paper, quantity, pulp, you can also indicate if you have any special requirement. We'll provide a formal quotation list after your inquiry received.

    Q: How long is your delivery time?
    A:Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q:How can I know the completion of my order?
    A:Deposit payment---start production---transfer info to logistic---book shipment--inform customer ETD & ETA---load container---balance payment---send documents

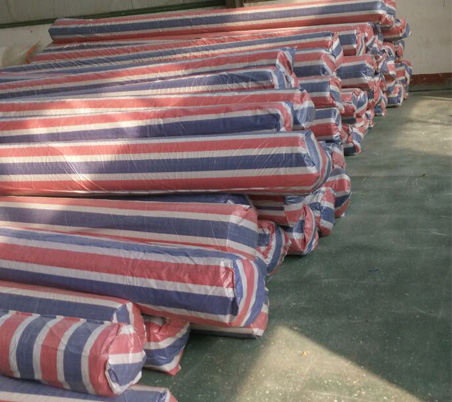

    Packing detail:
    1.We always use poly bag for the goods which ship by air, so that customer can save freight free.
    2.Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping.
    3.There also have some customer request us to use the carton to packing their goods.



    Polyester Forming Fabric Weaving for Paper Making

    Polyester Forming Fabric Weaving for Paper Making





    Service:

    1. Pre-sale service

    Prompt, professional and patient reply;

    Offer the best quality products;

    Recommend the most suitable products

    2.After-sales Service

    Timely tracking cargo transportation

    Building customer files for regularly visiting

    Free replacement of damaged products

    Deal with customers`dissatisfaction and complaints

    Send gift to our customers

    3. Customized packing is always welcomed

    4.Assist to arrange transportation

    Air Transportation, Sea Transportation

    International Express :DHL,TNT,FedEx,UPS,EMS,ETC.


    Polyester forming fabric weaving for paper making

    Polyester forming fabric weaving for paper making
