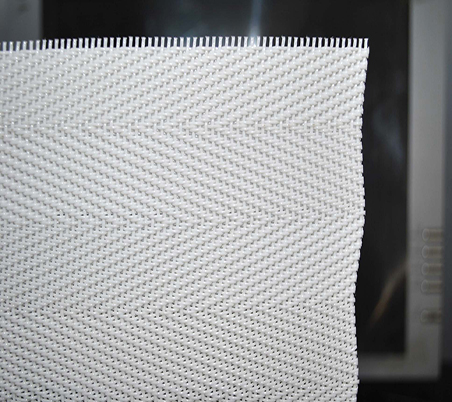

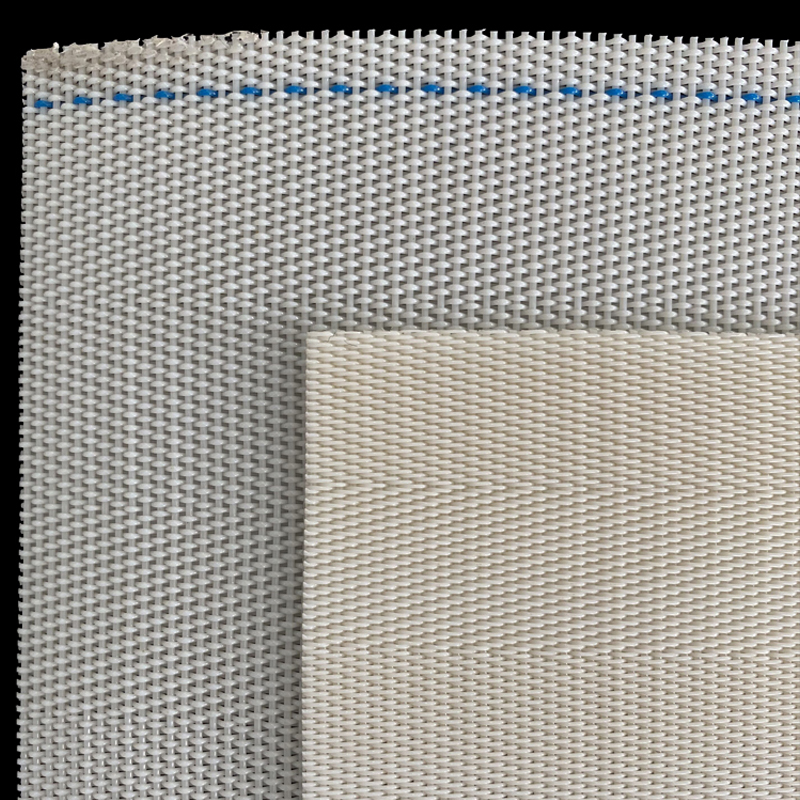

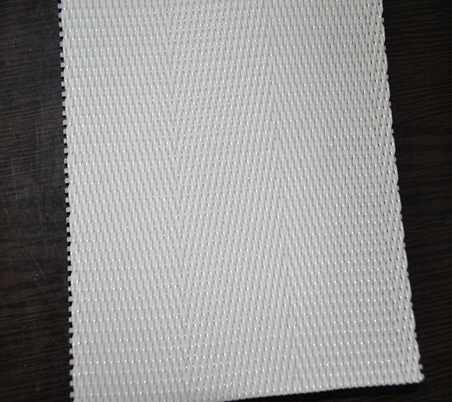

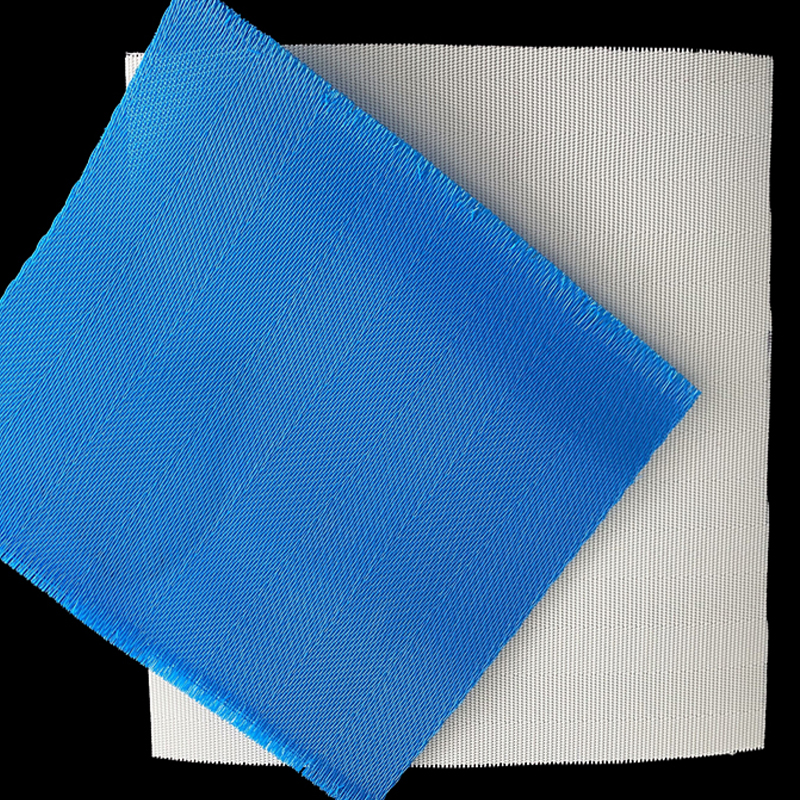

    Polyester Sludge Dehydration Fabrics(Press-Filter Fabric)

    Introduction

    Sludge Dehydration Fabrics is also called Press-Filter Fabrics which is mainly used for sludge dehydration, paper pulp and juice squeeze, Mine smelting, mine tailing disposal and other pressure filtration industries. They have the characteristics of good water permeability and non-revealed sludge, acid-resisting and alkali-resisting. Because of their designing structure, The sludge can be peel off easily from the filter cake, So the screen are easily cleaned and have a long working time. Mainly matching with belt type filter press, Vacuum rubber belt filter and horizontal vacuum belt filter.


    Characteristics and Advantages

    Good water permeability

    Good air permeability

    Acid- resistance, alkali- resistance, temperature resistant

    Heat resistance under 180 degrees

    Waterproof polyester filter mesh for sludge dehydration with smooth surface mesh, high strength, excellent conduct electricity and saving energy;


    Applications

    Polyester synthetic filter mesh screen for dewatering is mainly used for sludge treatment in food processing industry and sewage treatment factories,such as paper making,printing and dying, washer wrinker fabric factory etc. Industries listed below:
    - Filtration
    - Sludge dewatering
    - Industrial draining usage
    - Food cleaning and processing

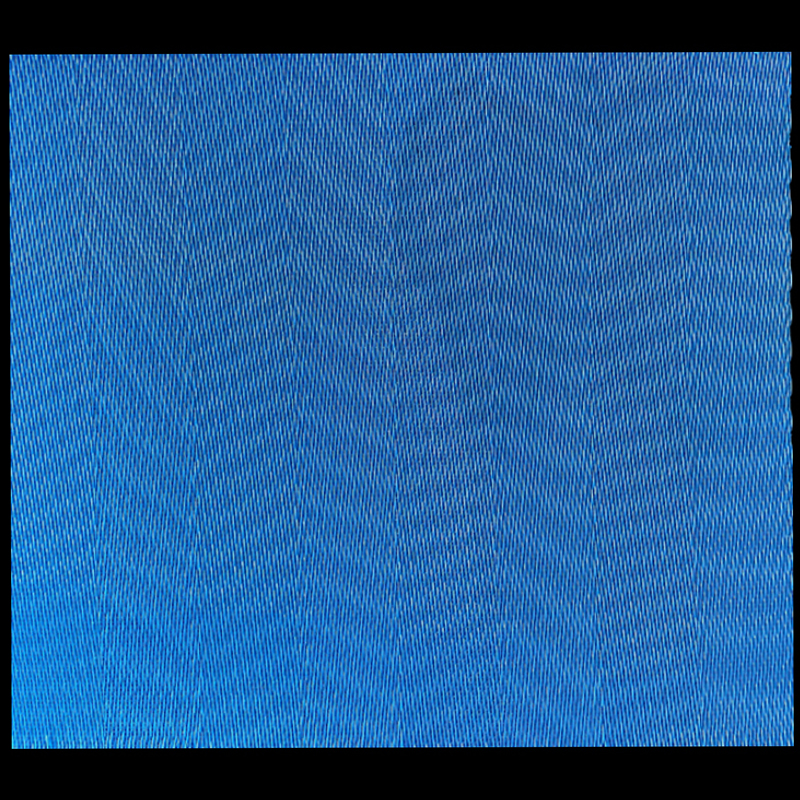

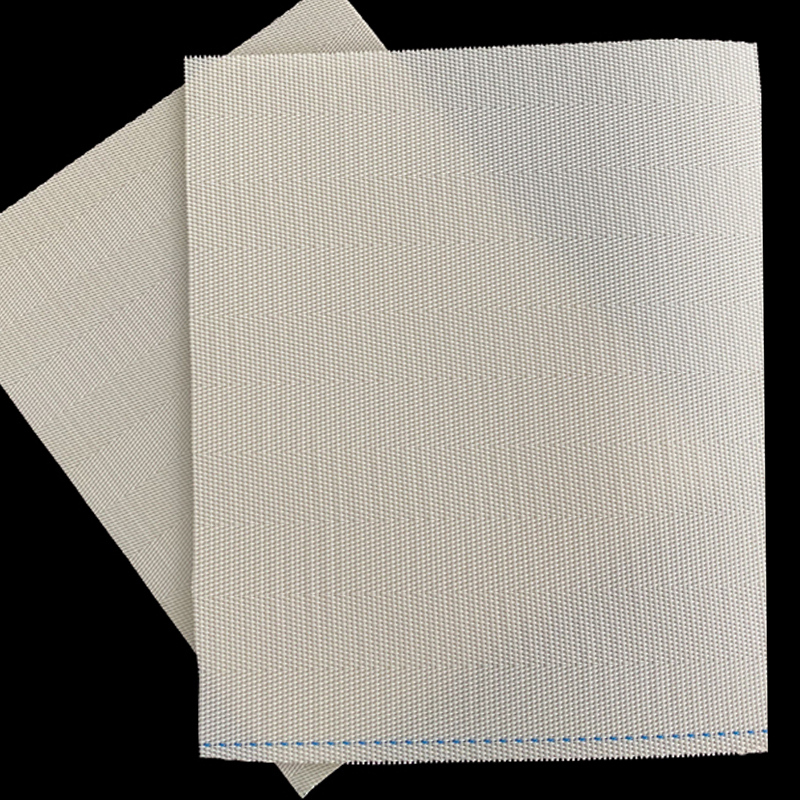

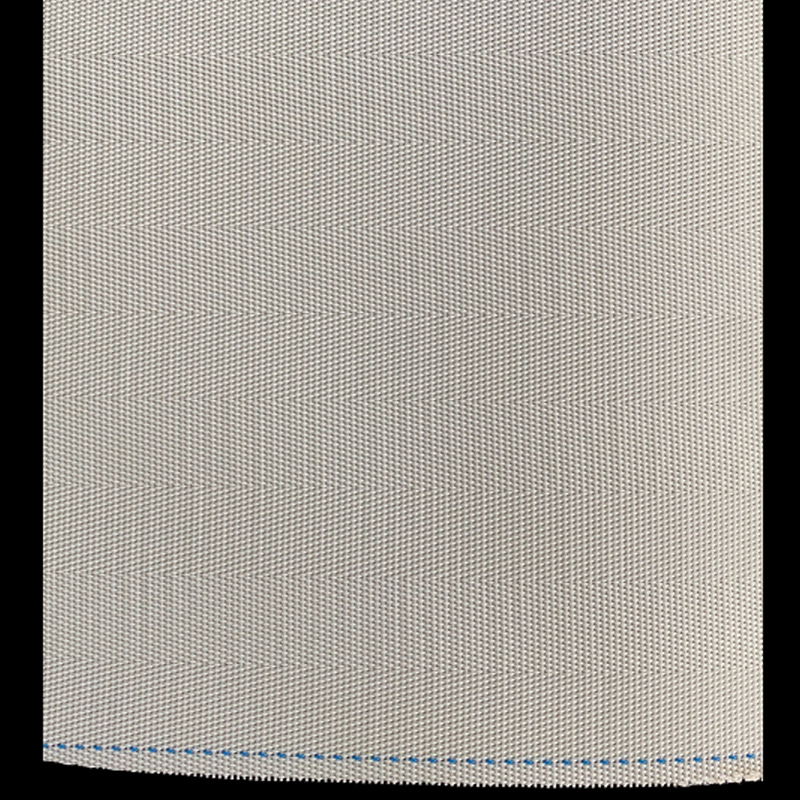

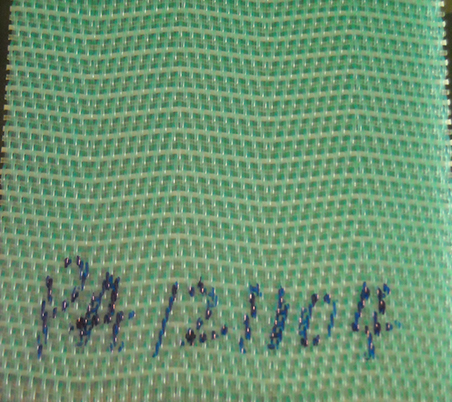

    Polyester Sludge Dehydration Fabrics(Press-Filter Fabric)

    Polyester Sludge Dehydration Fabrics(Press-Filter Fabric)

    Polyester Sludge Dehydration Fabrics(Press-Filter Fabric)

    Polyester Sludge Dehydration Fabrics(Press-Filter Fabric)



    Model of FabricsWire Diameter(mm)Density(wire/cm)Strength(N/cm)Air Permeabilitym3/m2h
    WarpWeftWarpWeftArea of the surface
    169030.70.9165.33≥22007894±500
    229030.50.9225.33≥20006800±500
    268080.50.8278.5≥21005120±500
    159050.90.9174.8≥45006741±500
    1511050.91.1164.8≥50006749±500
    1211040.91.1123.8≥36008610±500


     Specification List:

    ModelWire diameter
    mm
    Density
    Root/10cm
    Air permeability
    m3/m2h
    Net weight
    g/㎡
    Strength
    kg/cm
    Used in
    WarpWeftWarpWeft
    WNW148030.70.814247-603900- 85001400240Sludge,  Squeeze juice
    WNW168030.70.815646-5060001400265Sludge,  Squeeze juice
    WNW169040.750.91564780001800280Iron and steel industry sludge dewatering and
    Life sludge dewatering
    WNW1210540.91.051204280001650340Iron and steel industry sludge dewatering
    WNW229030.50.922050-559000- 100001200200Life sludge dewatering
    WNW207030.50.720070100001000185Life sludge dewatering and
    Chemical sludge dewatering
    GW245040.50.5240130-1408500- 100001180220Paper dry network and
    Paper sludge dewatering
    WNW089030.90.9785085001430210Industrial sludge dewatering
    WNW167040.70.716090120001350265Building materials industries
    WNW269080.50.926.469-755000- 55001364240Viscosity of the large Sludge
    CXW12 Mesh0.750.84748
    65094Paper pulp washing



    Packing Detail:

    1.We always use poly bag for the goods which ship by air, so that customer can save freight free.

    2.Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping.

    3.There also have some customer request us to use the carton to packing their goods.

    4.We can according to customer's requirement.



    Q: How long is your delivery time?

    A:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



    Q:Do you provide samples?

    A:Yes, we can provide some of the product samples.

    Its free and freight should be collected by your side.



    Q:How can I know the completion of my order?

    A:Deposit payment---start production---transfter infor to logistic---book shipment--inform customer ETD&ETA---load container---balance payment---send documents


    Polyester Sludge Dehydration Fabrics(Press-Filter Fabric)

    Polyester Sludge Dehydration Fabrics(Press-Filter Fabric)

    Polyester Sludge Dehydration Fabrics(Press-Filter Fabric)




    Service:

    1. Pre-sale service

    Prompt,professional and patient reply;

    Offer best quality products;

    Recommend the most suitable products

    2.After-sales Service

    Timely tracking cargo transportation

    Building customer files for regularly visit

    Free replacement of damaged products

    Deal with customers`dissatisfaction and complaints

    Send gift to our customers

    3.Customized packing is always welcomed

    4.Assist to arrange transportation

    Air Transportation,Sea Transportation

    International Express :DHL,TNT,FedEx,UPS,EMS,ETC.






    Polyester Sludge Dehydration Fabrics(Press-Filter Fabric)


    Polyester Sludge Dehydration Fabrics(Press-Filter Fabric)
