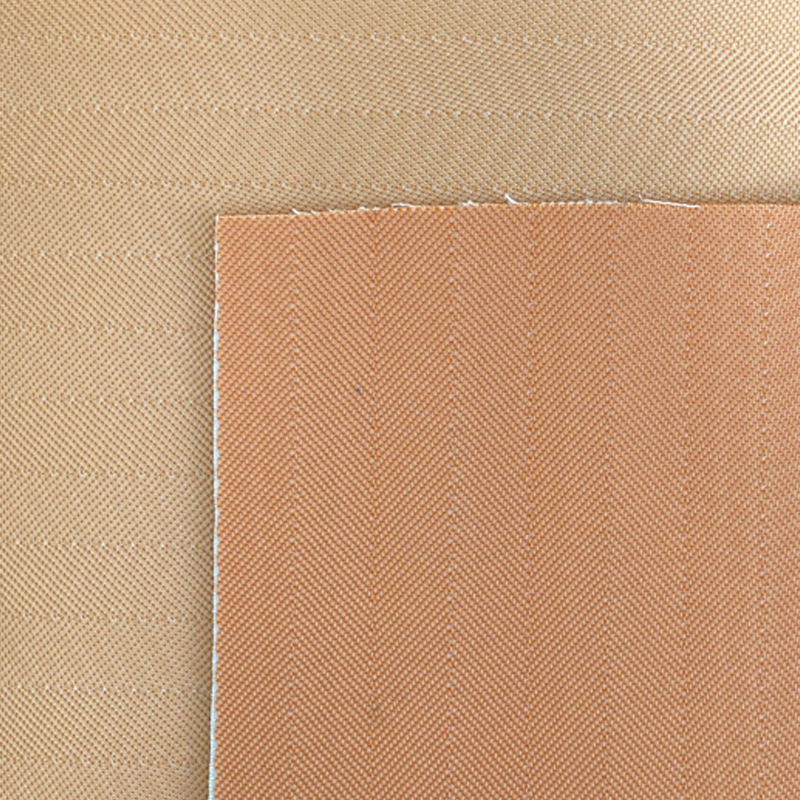

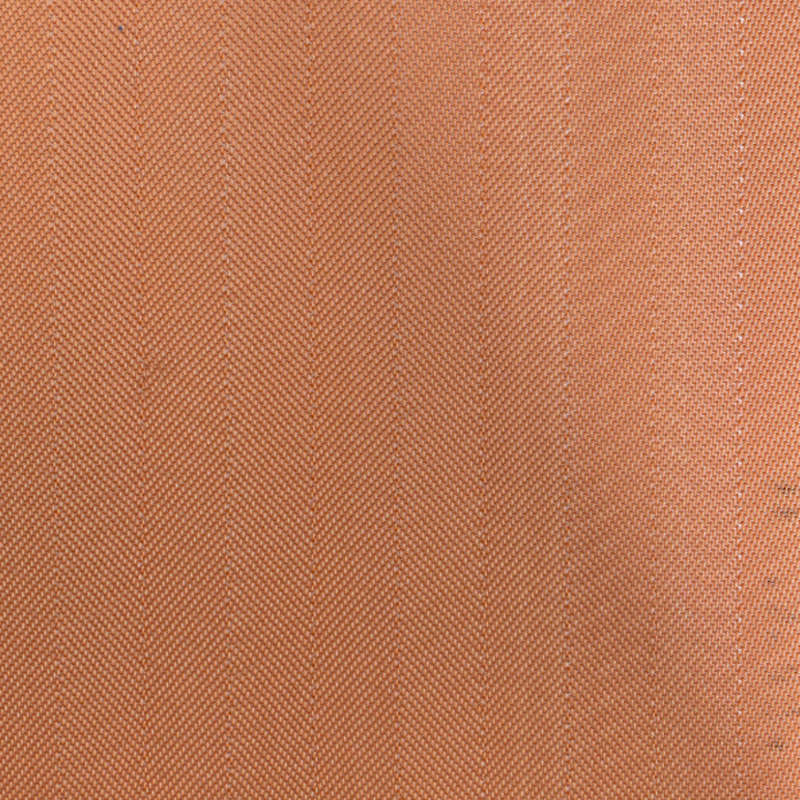

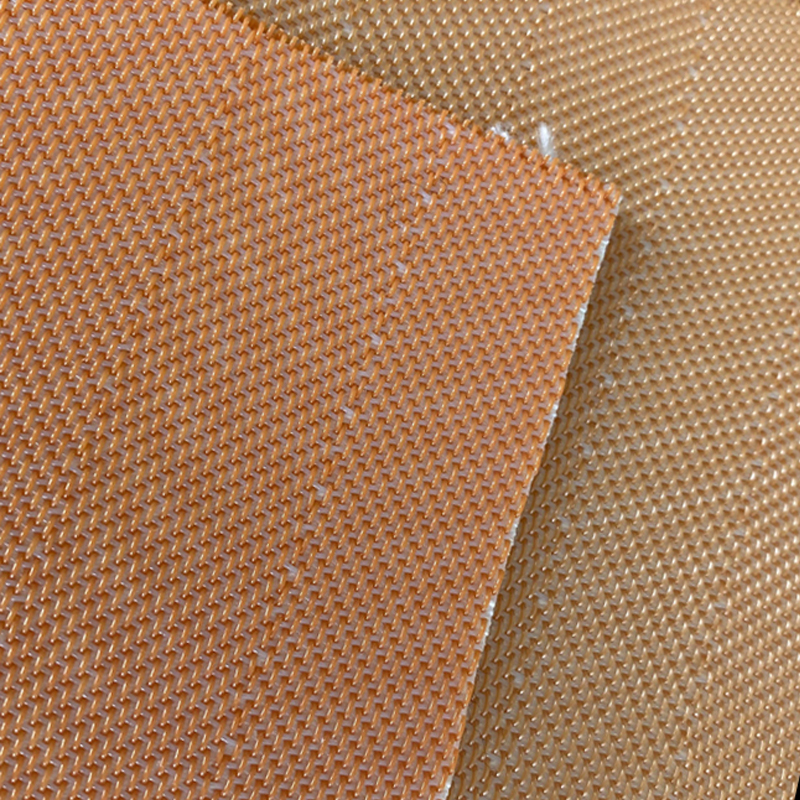

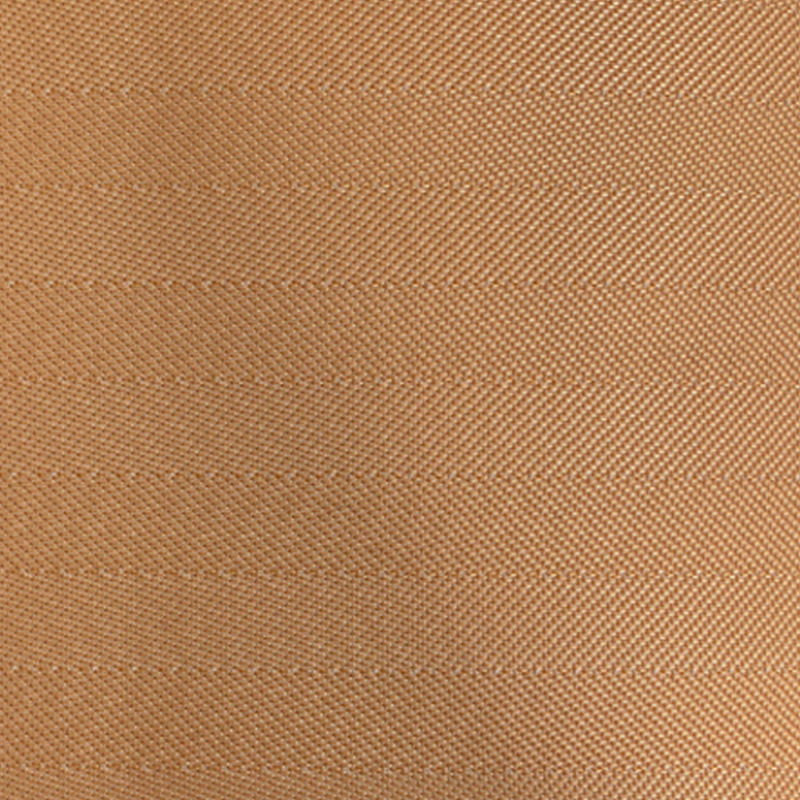

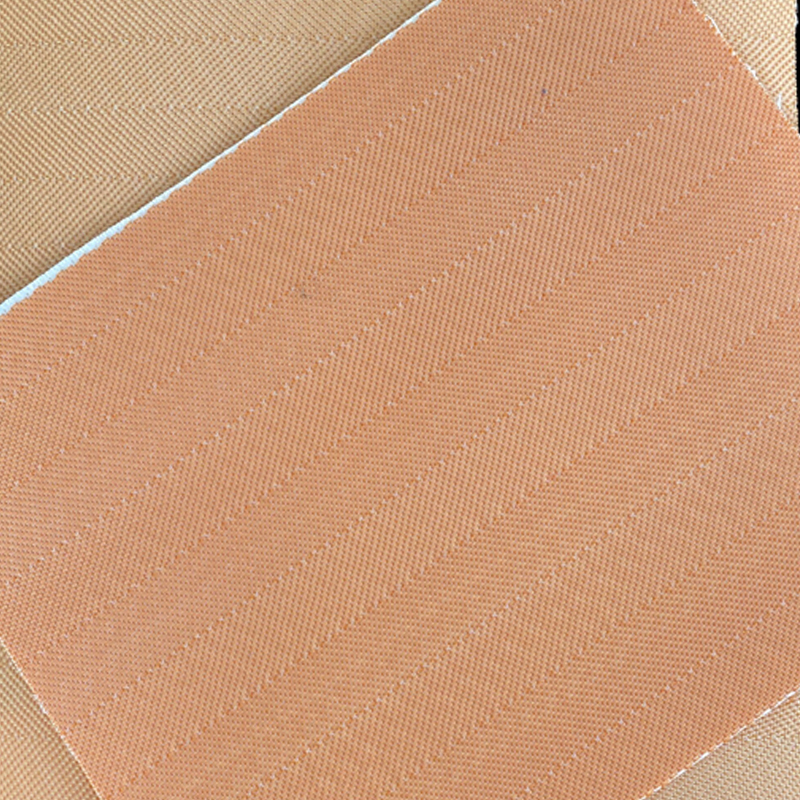

Polyester Vacuum Filter Belt
Introduction:
Vacuum filter belt is mainly used for FGD in power plant, mine tailings disposal, metallurgical. Chemical, coal chemical, food, pharmaceutical, environmental protection and other solid-liquid separation industries.
The belt have the characteristics of stable running, not easy to wrinkled, high filtration rate and it can peel off easily from the filter cake. Mainly matching with vacuum rubber belt filter, horizontal vacuum belt filter, vacuum drum filter and vertical filter press.
Application:

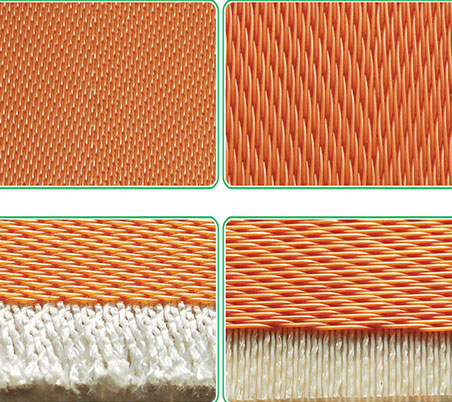

This polyester filter fabric is specially designed for desulfurization which is woven with polyester monofilaments and spun.
Desulfurization filter cloth is made with special first quality yarns in 100% polyester. Every desulfurization filter belt is heat-set granting a high degree of stability and long running life.
The filter cloth is also widely used in Vacuum belt dehydrator,level of vacuum belt filter ,vacuum belt type filter press,vertical automatic pressure filter,multiple disk filter,vacuum drum filter.
| Model of Fabrics | Wire Diameter(mm) | Desity(wie/cm) | Strength(N/cm) | Air Permeability(m3/m2h) | ||
| Warp | Weft | Warp | Weft | Area of the surface | ||

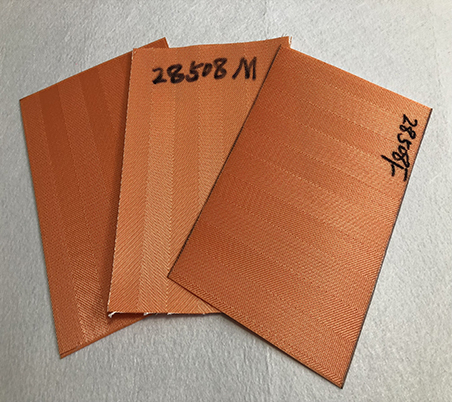

| C28508F | 0.5 | 0.5 | 30 | 20 | ≥1450 | 2158±500 |
| C28508M | 0.5 | 0.5 | 28 | 21 | ≥1390 | 710±500 |
Specification
| Model | Wire Diameter(mm) | Density(wire/cm) | Strength(N/cm) | Air permeability (127PA) | Thickness (mm) | Weight g/sqm | ||
| warp | weft | Warp | Weft | Area of the surface | ||||
| 16903(white color) | 0.7 | 0.9 | 16.2 | 5.5 | ≥2600 | 5857.15 | 2.1 | 1570 |
| 16903(blue color) | 0.7 | 0.9 | 16 | 5.4 | ≥2600 | 5367.56 | 1.96 | 1570 |
| 26808 | 0.5 | 0.9 | 26.3 | 8 | ≥2600 | 4564.76 | 1.5 | 1420 |
| 24908 | 0.5 | 0.9 | 24.4 | 7.1 | ≥2600 | 6645.55 | 2.17 | 1450 |
| 15905 | 0.92 | 0.93 | 15.2 | 4.7 | ≥2600 | 7981.14 | 2.9 | 1970 |
| 22903 | 0.5 | 0.9 | 22.4 | 5 | ≥2600 | 9327.53 | 1.7 | 1140 |
| 151105 | 0.9 | 1.1 | 15.1 | 4.7 | ≥2600 | 7279.14 | 3.05 | 2210 |
| 151105N | 0.9 | 1.1 | 15.2 | 4.8 | ≥2600 | 7055.94 | 2.98 | 2116 |
| 181005 | 0.66 | 1 | 18.4 | 6.4 | ≥2600 | 4085.97 | 2.21 | 1743 |
| 061204(Pink) | 1.2 | 1.2 | 7.4 | 4 | ≥2600 | 9597.52 | 2.75 | 1600 |

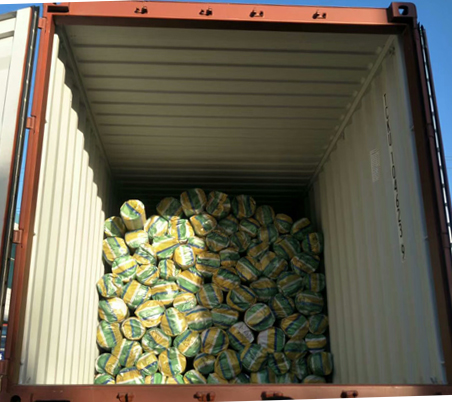

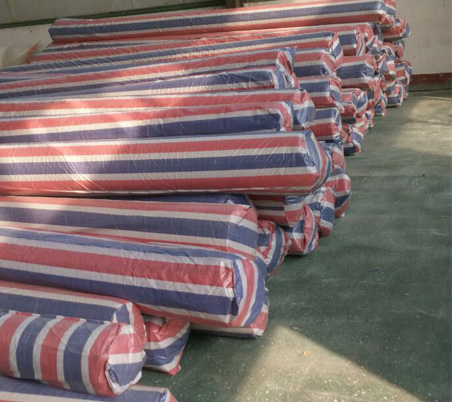

Packing Detail:
1.We always use poly bag for the goods which ship by air, so that customer can save freight free.
2.Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping.
3.There also have some customer request us to use the carton to packing their goods.
4.We can according to customer's requirement.
Q: How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples?
A:Yes, we can provide some of the product samples.
Its free and freight should be collected by your side.
Q:How can I know the completion of my order?
A:Deposit payment---start production---transfter infor to logistic---book shipment--inform customer ETD&ETA---load container---balance payment---send documents
Service:
1. Pre-sale service
Prompt,professional and patient reply;
Offer best quality products;
Recommend the most suitable products
2.After-sales Service
Timely tracking cargo transportation
Building customer files for regularly visit
Free replacement of damaged products
Deal with customers`dissatisfaction and complaints
Send gift to our customers
3.Customized packing is always welcomed
4.Assist to arrange transportation
Air Transportation,Sea Transportation
International Express :DHL,TNT,FedEx,UPS,EMS,ETC.
